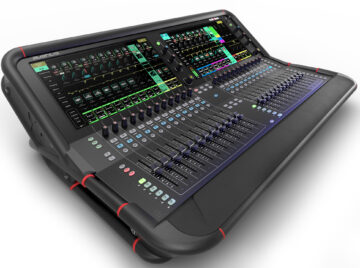

Allen and Heath Avantis

Allen and Heath Avantis Digital Mixing Desk

Allen and Heath Avantis hire

Avantis puts all of Allen and Heaths next-generation technology in a 64 channel / 42 configurable bus console, with dual Full HD touchscreens, a super-flexible workflow with Continuity UI and a rugged full metal chassis.

Our Hire Avantis systems are supplied with a GX4816 Digital stage box.

System Inputs

12 Analogue XLR and 1 stereo AES input on the console, 48 Analogue XLR inputs on the stagebox, giving a total of 62 input channels.

System Outputs

12 Analogue XLR and 2 stereo AES outputs on the console, 16 Analogue XLR outputs on the stagebox, giving a total of 32 output channels

Additional stage boxes can be linked into the system along with Allen and Heaths personnel monitor system.

Desk Spec,

  • 96kHz 64 channel / 42 bus digital mixer
  • XCVI FPGA core with ultra-low latency (0.7ms)
  • Fully configurable mix bus architecture
  • Super-tough, full metal chassis
  • Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
  • dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
  • 12 RackExtra FX slots with dedicated stereo returns
  • 16 DCAs
  • Dual 15.6” Full HD capacitive touchscreens with gesture control
  • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
  • Fully assignable layout
  • 144 fader strips (24 faders, 6 layers) with optional dedicated master section
  • SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
  • 12 analogue XLR Inputs / 12 analogue XLR Outputs
  • 1 Stereo AES In / 2 Stereo AES Out
  • 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
  • User configurable rotary controls
  • 24 assignable SoftKeys
  • Comprehensive metering with multi-point peak detection
  • Internal storage for stereo playback and recording
  • USB stereo playback
  • BNC Word Clock

GX4816 - THE PERFECT PARTNER I/O

48 XLR Input / 16 XLR Output - 96kHz

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion that makes it the ideal I/O expander for Avantis.

Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket.

Allen and Heath Avantis Hire Yorkshire, Innovation Productions.

Week Hire £600.00 (EX-VAT)
Day Hire £200.00 (EX-VAT)
