The Laserworld Diode Series units come with diode-only laser sources ("Pure Diode") and thus have great beam specifications with beautiful analog color modulation.
The Diode Series units can be controlled over ILDA and have a bult-in memory with preset patterns, that can be easily triggered through DMX. They can also be operated in automatic and sound-to-light mode.
This laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.
Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.

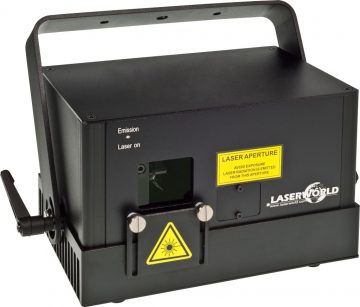

The Laserworld DS-1800RGB comes with 450 mW red at 638 nm and uses the new green diodes at 520 nm (90 mW). The blue diode has 1'160 mW power at 450 nm.
Beam specifications are at great 3 mm/1.3 mrad full angle and scanning can go as fast as 40 kpps@4°, whereas the scanners can scan a maximum angle of 40°.
With integrated and switchable scan fail safety.
Can be supplied for dry hire or with an operator for an additional cost.
Contact us for Laser Hire in Yorkshire.
|Total Power typical:||1'900 mW|
|Guaranteed power:||1'700 mW|
|Power Red:||450 mW / 638 nm|
|Power Green:||90 mW / 520 nm|
|Power Blue:||1'160 mW / 450 nm|
|Beam Specifications (full angle):||ca. 3 mm / 1.3 mrad|
|Operation Modes:||ILDA, DMX, stand-alone, sound-to-light, master-slave|
|Scan Angle max.:||40°|
|Basic Patterns:||over 120 (layers, tunnels, fences, waves, etc.)|
|Accessories:||power cable, manual, keys, interlock, allen key|
|Power Supply:||85V - 250 V AC 50/60 Hz|
|Power Consumption:||120 W|
