Laserworld Showeditor License / ILDA interface
Laserworld ShowNET network interface with software license for Laserworld Showeditor.
Laserworld Showeditor is Laserworld´s all-in-one laser show control software which comes with many easy-to-use features for beginners as well as for professionals.

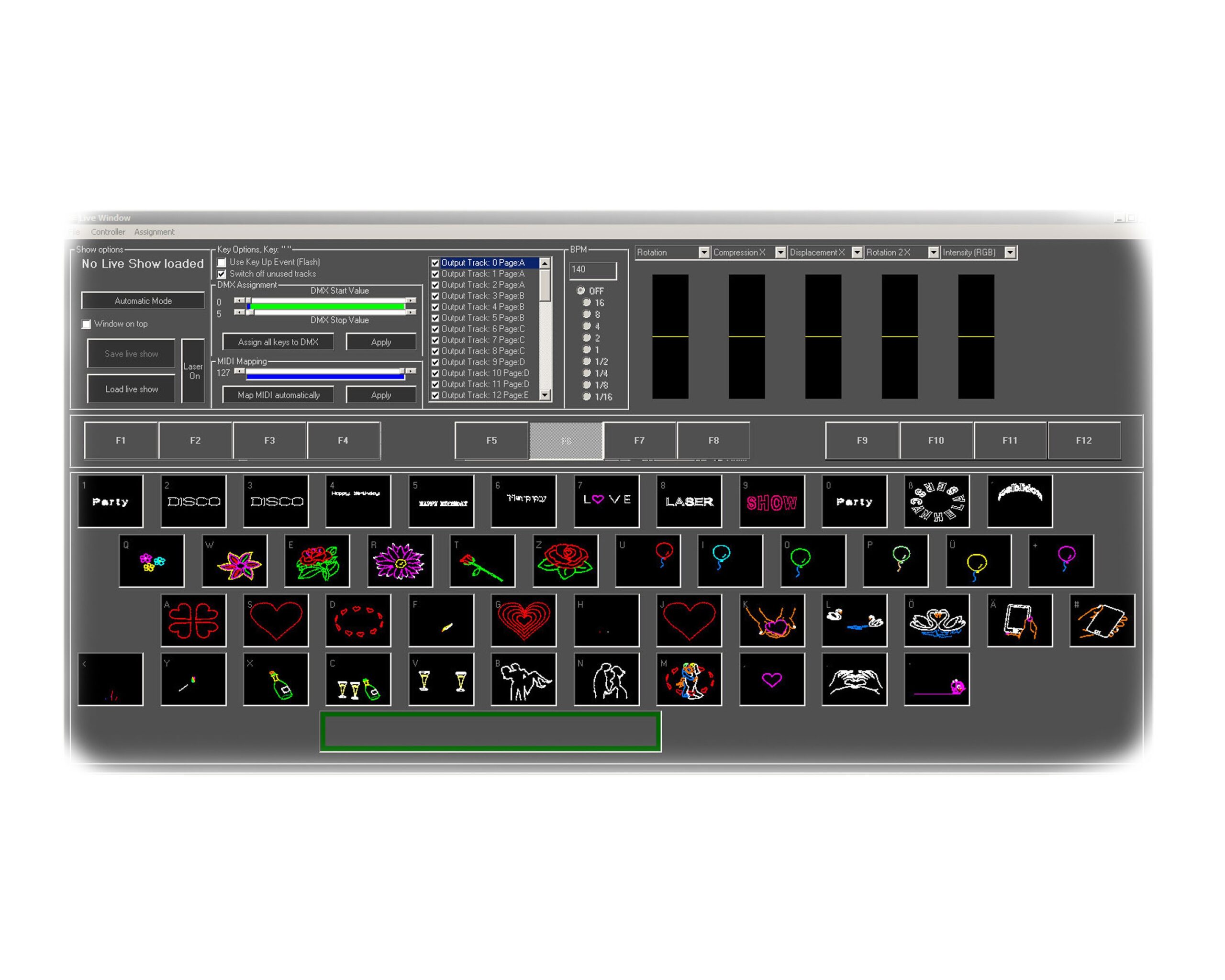

It features intuitive creation of timeline based laser shows and ready-to-go live laser shows with simple operation and commands. The software includes 100 free laser shows and pre-configured MIDI profiles for immediate start.
ILDA (*.ild) files can be exported and imported, allowing an uncomplicated exchange between different software products.
Laserworld Showeditor also supports DMX input and output: It can be remote controlled through a DMX controller and it can control lighting fixtures of any kind.
Enhanced MIDI features grant the creation of own profiles and the compatibility with SMPTE timecode signals, which makes it suitable for professional multimedia applications.
Thanks to the Figure Editor even laser show beginners succeed in creating own figures, logos and running or morphing texts. Professional users benefit from advanced features, like the abstracts generator, colour adaption and versatile optimization tools.
The ShowNET network interface reads micro-SD-cards, on which *.ild files can be stored. The files can then either be automatically played back or individually triggered through DMX.
More information, like a tutorial and an FAQ section as well as a support forum can be found on http://www.showeditor.com
Software features of Laserworld Showeditor:
|Internal resolution XY||32 Bit|
|Resolution color RGBI||8 Bit|
|Number of tracks on timeline||48 tracks on 16 track pages + 18 effects each|
|Matrix Mapping||16 track page mixes to up to 16 ILDA interfaces|
|Number of output interfaces at control PC||no limitation|
|Number of interfaces with output at the same time||16|
|Output speed max.||~150.000 points per second|
|AI File Import||Yes, file version 5|
|ILDA Import / Export||Single frames and whole shows|
|ILDA Export protection||can be locked to license|
|SMS output on Laser||Yes (Siemens TSM Module TC35i or TXT file)|
|Fonts||any TTF + 3 extra fonts|
|Simulation||Yes (either DAC or simulation)|
|Real time output to laser||Yes|
|Multi Screen support||Yes (window positions are saved)|
|Skin (custom colors for software look)||Selectable|
|Individual scanner settings per output interface||Yes (including pps rate)|
|Individual color correction per output interface||Yes, TTL, Analog, RGB, 3-point|
|Individual mapping per output interface||Yes, TTL, Analog, RGB, 3-point|
|Individual geometric correction per output interface||Yes, invert X/Y, distortion, Size, position, etc.|
|Safety zones / beam attenuation||Yes, per output interface. 2 with soft fading|
|Individual names per output interface||Yes|
|Settings can be saved||Yes|
|Virtual hardware for simulation etc.||Yes|
|Auto Monitor Standby||Yes|
|Video support||Yes, video as basis for timeline shows output via second monitor channel|
|Free shows||more than 250 Free shows supported|
|Commercial shows||available online|
Hardware features of Laserworld ShowNET:
|X/Y scanner outputs with 12 bit resolution (4096 different positions on each axis)|
|Color outputs with 8 bit resolution (256 different intensity values per color channel): red, green, blue, intensity linked to green|
|DMX512 input and output (non-isolated)|
|100 Mbit Ethernet port|
|Flexible IP address setting: static address, DHCP or AutoIP|
|MicroSD card slot for ILDA file playback (ILDA format code 4/5 RGB)|
|standalone operation and DMX IN/OUT via DMX-Adapter|
|Maximum scan speed ~100.000 points per second|
|Up to 16 devices can be used in parallel for multiprojector laser shows|
|Built-in ArtNet-to-DMX converter|
