Martin Mac Quantum Profile Spot Hire

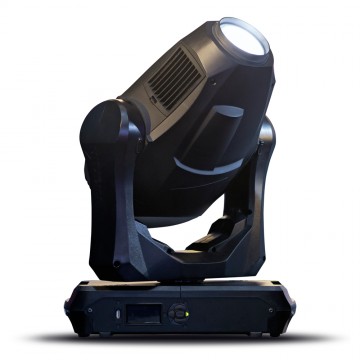

Martin Mac Quantum Profile Spot

The Martin MAC Quantum Profile is an extremely bright LED profile fixture which combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.

With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.

  • First real alternative to a 700/800 watt HID fixture
  • Flat field, crisp image, high contrast
  • Full feature set including CMY color mixing and 1:3 zoom

The Martin Mac Quantum Profile is available for hire priced individually, flight cased in pairs.

http://www.martin.com/en-us/product-details/mac-quantum-profile

Martin Mac Quantum Profile Tech Specs
Physical
Length: 452 mm
Width (across yoke): 431 mm
Height (head straight up): 642 mm
Height (maximum): 648 mm
Weight: 23.2 kg
Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 color filters plus open
Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
Beam effects: Rotating three-facet prismZoom: Motorized
Focus: Motorized, with zoom-focus trackingIris: 0 - 100%, pulse effects
Shutter effect: Electronic, with variable speed regular and random strobe
Electronic dimming: Four dimming curve options
Pan: 540°Tilt: 268°Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming
Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
DMX channels: 19/27
Setting and addressing: Control panel with backlit graphic display
Optics
Light source: 475 W LED engine
LED refresh rate: 3000 Hz
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
Zoom range: 12° - 36° (1:3)
Output: 12 700 lumens*
Figure obtained under manufacturer´s test conditions
Construction
Housing: Black, High-impact flame-retardant thermoplastic, IP20
Installation
Mounting points: 4 pairs of quarter-turn locks
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m
Minimum distance to illuminated surfaces: 2.0 m
Connections
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Maximum total power consumption: 750 W
Typical half-cycle RMS inrush current: 10.3 A
Typical power consumption, all effects static, zero light output:Approx. 50 W
Maximum total power consumption: 750 W
Typical Power and Current 240 V, 50 Hz: 2.4 A, 565 W, PF 0.988
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Please contact us to enquire about the hire of the Martin Mac Quantum Profile.
Week Hire £120.00 (EX-VAT)
Day Hire £80.00 (EX-VAT)
